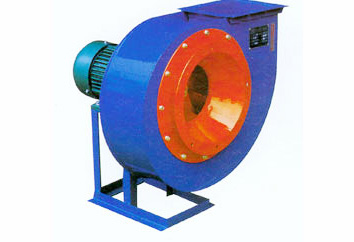

FC6-48型離心通風機

機號 NO	轉速 (r/min)	流量 (m³/h)	全壓 (N/m²))	內效率 (%)	電動機 (KW-P)	主軸帶輪	電機帶輪
						規格	規格
3.15C	3150	1487 1793 2099 2405 2711 3017 3323	1880 1831 1772 1703 1615 1507 1376	70 72.8 74.8 75.8 75.5 73.3 70	Y90L 2.2-2	16028A2	18024A2
					Y100L 3-2		18028A2
3.15C	2800	1322 1594 1866 2138 2410 2682 2951	1483 1445 1398 1344 1274 1189 1086	70 72.8 74.8 75.8 75.5 73.3 70	Y90S 1.5-2	16028A2	16024A2
					Y90L 2.2-2
3.15C	2500	1180 1423 1666 1909 2152 2395 2637	1181 1151 1114 1070 1015 947 865	70 72.8 74.8 75.8 75.5 73.3 70	Y802 1.1-2	16028A2	15019A2
					Y90S 1.5-2		15024A2
3.15C	2240	1057 1275 1493 1710 1928 2146 2363	948 923 893 859 814 760 694	70 72.8 74.8 75.8 75.5 73.3 70	Y80S₂ 1.1-2	16028A2	13219A2
3.15C	2000	944 1138 1333 1527 1721 1916 2110	755 735 712 684 649 605 553	70 72.8 74.8 75.8 75.5 73.3 70	Y80S₁ 0.75-2	16028A2	11819A2
3.15C	1800	850 1204 1199 1374 1549 1724 1899	611 595 576 554 525 490 448	70 72.8 74.8 75.8 75.5 73.3 70	Y80S₁ 0.75-2	16028A2	10619A2
3.15C	1600	755 911 1066 1222 1377 1533 1688	483 470 455 437 415 387 354	70 72.8 74.8 75.8 75.5 73.3 70	Y80S₁ 0.75-2	16028A2	9519A2
4C	2500	2369 2890 3411 3932 4453 4974 5495	1933 1877 1810 1737 1647 1527 1384	70.3 73.5 75.6 76.6 76.1 73.8 70	Y100L 3-2	20038A2	18028A2
					Y112M 4-2
4C	2240	2122 2589 3056 3523 3990 4457 4927	1550 1505 1451 1393 1321 1225 1110	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90L 2.2-2	16038A2	16024A2
					Y100L 3-2		16028A2
4C	2000	1895 2312 2729 3146 3562 3979 4396	1234 1198 1156 1109 1052 976 884	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90 2.2-2	20038A2	14024A2
4C	1800	1705 2081 2456 2831 3206 3581 3957	999 970 935 898 851 790 716	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90S 1.5-2	20038A2	12424A2
4C	1600	1516 1849 2183 2516 2850 3183 3517	798 766 739 709 672 624 565	70.3 73.5 75.6 76.6 76.1 73.8 70	Y802 1.1-2	20038A2	11819A2
					Y90S 1.5-2		11824A2
4C	1400	1326 1618 1910 2202 2494 2786 3077	603 586 565 542 514 477 433	70.3 73.5 75.6 76.6 76.1 73.8 70	Y80S₁ 0.75-2	20038A2	10019A2
4C	1250	1184 1445 1705 1966 2227 2487 2748	481 467 450 432 410 380 345	70.3 73.5 75.6 76.6 76.1 73.8 70	Y80S₁ 0.75-2	20038B2	9519A2
5C	2000	3553 4256 5144 6070 6958 7883 8623	1953 1903 1837 1753 1647 1521 1381	70.3 73.5 75.6 76.6 76.1 73.8 70	Y132S1 5.5-2	20038B2	18038B2
					Y132S2 7.5-2
5C	1800	3198 3831 4630 5463 6262 7095 7761	1580 1540 1486 1419 1332 1230 1118	70.3 73.5 75.6 76.6 76.1 73.8 70	Y112M 4-2	25038B2	16028B2
					Y132S 5.5-2		16038B2
5C	1600	2842 3405 4116 4856 5566 6307 6899	1247 1215 1173 1120 1052 971 882	70.3 73.5 75.6 76.6 76.1 73.8 70	Y100L 3-2	25038A2	15028A2
5C	1400	2487 2979 3601 4249 4871 5518 6036	954 929 897 856 805 743 675	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90L 2.2-2	25038A2	12524A2
5C	1250	2221 2660 3215 3794 4348 4927 5390	760 740 715 682 641 592 538	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90S₁ 1.5-2	25038A2	11224A2
					Y90L 2.2-2
5C	1000	1990 2383 2881 3399 3896 4415 4829	610 594 573 548 514 475 432	70.3 73.5 75.6 76.6 76.1 73.8 70	Y802₂ 1.1-2	25038A2	10619A2
					Y90S 1.5-2		10624A2
5C	10000	1776 2128 2572 3035 3479 3942 4312	486 473 457 436 410 379 344	70.3 73.5 75.6 76.6 76.1 73.8 70	Y80S₁ 0.75-2	25038A2	9519A2
					Y802₂ 1.1-2
6.3C	1600	5686 6811 8233 9713 11134 12615 13799	1985 1934 1866 782 1673 1545 1403	70.3 73.5 75.6 76.6 76.1 73.8 70	Y132S2 7.5-2	31548B3	16038B3
					Y160M1 11-2
6.3C	1400	4975 5960 7204 8499 9743 11038 12074	1517 1478 1427 1362 1279 1181 1073	70.3 73.5 75.6 76.6 76.1 73.8 70	Y132S1 5.5-2	31548B3	16038B3
					Y132S2 7.5-2
6.3C	1250	4442 5321 6432 7588 8699 9856 1078	1208 1177 1136 1085 1019 941 855	70.3 73.5 75.6 76.6 76.1 73.8 70	Y112M1 5.5-2	31548B3	28028B3
					Y132S 5.5-2		28028B3
6.3C	1120	3980 4768 5763 6799 7794 8831 9660	969 944 911 870 818 755 686	70.3 73.5 75.6 76.6 76.1 73.8 70	Y100L2 3-4	31548B3	25028B3
					Y112M 4-4
6.3C	1000	3554 4257 5145 6071 6959 7885 8625	772 752 726 693 651 602 547	70.3 73.5 75.6 76.6 76.1 73.8 70	Y100L1 2.2-4	31548B2	22428B2
					Y100L2 3-4
6.3C	900	3198 3831 4631 5464 6263 7096 7762	625 609 588 561 527 487 443	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90 1.5-4	31548A2	15028A2
					Y100L2 2.2-4
6.3C	800	2843 3406 4116 4857 5567 6308 6900	494 481 464 443 417 385 350	70.3 73.5 75.6 76.6 76.1 73.8 70	Y90S 1.1-4	31548A2	17542A2
					Y90L 1.5-4
8C	1250	9096 10895 13169 15538 17812 20180 22075	1953 1903 1837 1753 1647 1521 1381	70 72.8 75.5 76.8 76.4 73.8 70	Y160L 15-4	40065C3	35542C3
8C	1120	8150 9763 11799 13922 15959 18082 19779	1566 1526 1472 1406 132 1219 1108	70 72.8 75.5 76.8 76.4 73.8 70	Y132M 7.5-4	40065C3	31538C3
					Y160M 3-4		31542C3
8C	1000	7276 8717 10535 12430 14249 16144 17760	1247 1215 1173 1120 1052 971 882	70 72.8 75.5 76.8 76.4 73.8 70	Y132M 7.5-4	40065B3	28038B3
8C	900	6549 7845 9482 11187 12824 14530 15894	1009 983 949 906 851 786 714	70 72.8 75.5 76.8 76.4 73.8 70	Y132S2 5.5-4	40065B3	25038B3
					Y132M 7.5-4
8C	800	5821 6973 8429 9944 11399 12915 14128	797 776 749 716 672 621 546	70 72.8 75.5 76.8 76.4 73.8 70	Y100L2 3-4	40065B3	22438B3
					Y112M 4-4
8C	710	5166 6189 7480 8826 10117 11462 12539	627 611 590 563 529 489 444	70 72.8 75.5 76.8 76.4 73.8 70	Y100L2 3-4	40065B2	28028B2
8C	630	4584 5491 637 7831 8977 10171 11126	494 481 464 443 417 385 350	70 72.8 75.5 76.8 76.4 73.8 70	Y100L1 2.2-4	40065B2	18028B2
10C	1000	14804 18356 22057 25610 29163 32864 36417	2043 1996 1900 1797 1667 1530 1381	73.7 77.5 79 79.2 78.2 75.8 71.3	Y180M 18.5-4	50065C3	35548C3
					Y180L 22-4
10C	900	13323 16521 19852 23049 26247 29578 32776	1653 1615 1537 1445 1349 1238 1118	73.7 77.5 79 79.2 78.2 75.8 71.3	Y160L 15-4	50065C3	31542C3
					Y180M 18.5-4		31548C3
10C	800	11843 14685 17646 20488 23331 26291 29134	1034 1274 1213 1141 1065 978 882	73.7 77.5 79 79.2 78.2 75.8 71.3	Y160M 11-4	50065C3	28042C3
					Y160L 15-4
10C	710	10510 13033 15661 18483 20706 23334 25856	1028 1003 955 898 838 769 695	73.7 77.5 79 79.2 78.2 75.8 71.3	Y132M 7.5-4	50065C3	25038C3
					Y160M 11-5		25042C3
10C	630	9327 11564 13896 16134 18373 20704 22943	807 789 751 706 659 605 547	73.7 77.5 79 79.2 78.2 75.8 71.3	Y132S 5.5-4	50065B3	22438B3
					Y132M 7.5-4
10C	560	8290 10279 12352 14342 16331 18404 20393	638 623 593 558 52 478 432	73.7 77.5 79 79.2 78.2 75.8 71.3	Y112M 4-4	50065B2	28028B2
					Y132S 5.5-4		20038B2
10C	500	7402 9178 11028 12805 14581 16432 18208	508 497 473 445 415 381 344	73.7 77.5 79 79.2 78.2 75.8 71.3	Y112M 4-4	50065B2	18028B2
12.5C	800	23131 28682 34465 40017 45568 51351 56902	2043 1996 1900 1787 1667 1530 1381	73.7 77.5 79 79.2 78.2 75.8 71.3	Y200L 30-4	63075D3	35555D3
					Y225S 37-4		35560D3
12.5C	710	20528 25455 30588 35515 40442 45574 50501	1607 1570 1494 1405 1311 1024 1087	73.7 77.5 79 79.2 78.2 75.8 71.3	Y180L 22-4	63075C3	31548C3
					Y200L 18.5-4		31555C3
12.5C	630	18215 22587 27141 31513 35885 40439 44811	1264 1235 2175 1105 1031 947 855	73.7 77.5 79 79.2 78.2 75.8 71.3	Y160M 15-4	63075C3	28042C3
					Y180L 18.5-4		28048C3
12.5C	560	16191 20077 24125 28011 31897 35945 39832	997 975 928 873 814 748 675	73.7 77.5 79 79.2 78.2 75.8 71.3	Y160M 11-4	63075C3	25042C3
					Y160L 15-4
12.5C	500	14457 17926 21540 25010 28480 32094 35564	795 777 739 695 649 596 538	73.7 77.5 79 79.2 78.2 75.8 71.3	Y132M 7.5-4	63075B3	22438B3
					Y160M 11-4		22442B3
12.5C	450	13011 16134 19386 22509 25632 28885 32007	643 629 598 563 525 482 436	73.7 77.5 79 79.2 78.2 75.8 71.3	Y132S 5.5-4	63075B2	20038B2
					Y132M 7.5-4
12.5C	400	11565 14341 17232 20008 22784 25675 28451	508 497 473 445 415 381 344	73.7 77.5 79 79.2 78.2 75.8 71.3	Y112M 4-4	63075B2	18028B2
					Y132S 5.5-4		18038B2
